Detailed Specifications

Wheel Technology

1. New Wheel Design

• Excellent sound and air performance.

• Wide performance range of high efficiency and non-overloading.

• The balance quality grade as high as G2.5.

2. Air Performance Design

• Optimized design through CFD flow field simulation and repeated tests.

• The front disc and inlet cone in conformity with flow field characteristics.

• Flow passages control: airflow regulated well through precise synergy.

• Optimized mounting angle for blades.

3. Structural Design

• Stress analysis by FEA method for better performance.

• Various additional strengthening for different specifications for greater reliability.

• Riveting technology used to avoid stress.

4. Wheel Improved

• Continuous Improvement: upgraded to the 4th generation of wheel.

• Compared with the 3rd generation: overall performance improved by 5-10%.

• Compared with the 3rd generation: overall sound level reduced by 2-3 dB(A).

5. Advanced Process

• Wheel cone and inlet cone formed by spinning to ensure good air performance.

• Inlet cone: replacing the inlet bell to ensure smooth airflow.

• Blades: formed by punching to ensure quality.

• Tooling: dedicated fixtures to ensure the precise mounting position of blades.

General Features

1. Wide Performance Range and More Economical

• The 4th generation of centrifugal Wind-Surfer wheel possessing a wider pressure scope and lower sound compared with the 3rd generation.

• The wheel diameter as long as one meter, requiring fewer fans and lower primary investment.

• No scroll needed and the fan size reduced, making installation easier.

2. Sound Solution: Centrifugal Inline Type

• Fundamental difference from axial/mixed flow types: speed reduced by 20-30%.

• Range of sound pressure level down by 10-15 dB(A).

• A fundamental solution to sound.

3. No Scroll

• Air directly pressurized in wheel and airflow pattern improved.

• Direct drive and dust-free: suitable for clean rooms in microelectronics, food and medical industries.

4. Square Design with Different Discharge Direction Options: Mounting Costs Reduced

• Square inlet/outlet flanged sleeve: connector and ring flange now not used.

• Lower air duct connection costs and faster installation.

• Different mounting positions available for the motor.

• Different discharge positions: ease of design and installation.

Technical Information

1. Quality Standards

The fan shall be tested and certified in accordance with AMCA Standard 210 & 300,UL 705, TUV EN 12101-3 for smoke application. AMCA Seal for (Efficiency Sound and Air Performance) shall be tagged on each fan before leaving the factory as a standard seal, for other seals shall be tagged on the fan according to application and customer needs.

The manufacturer shall obtain Production License for National Industrial Products and be certified by ISO 9001, ISO 14001, ISO 45001.

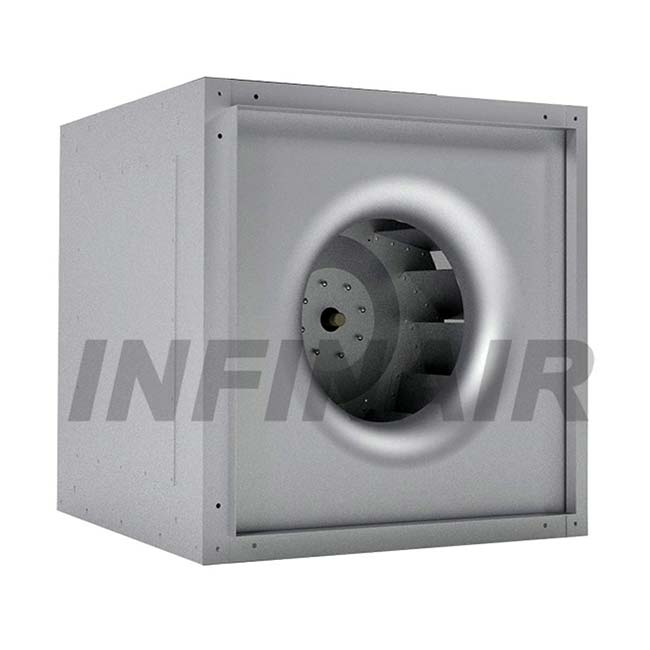

2. Fan Type

The fan shall be centrifugal inline type, with an aluminum backward inclined centrifugal wheel directly facing incoming air. The wheel cone shall have a curved section to ensure smooth air movement. Each wheel should be statically and dynamically balanced up to AMCA 204- G2.5 balance quality grade (Standard ISO 1801940).

3. Fan Housing

Material: The fan housing shall be made in cast steel sheet (Option: cold roll steel sheet finished with electrostatic epoxy coatings).

It shall be thick and strong enough to support the drive mechanism and motor.

Shape: The housing shall be a square one equipped with square flanged sleeves to avoid square/ round connectors. The housing design shall allow different discharge directions. On the left and right sides, there shall be sizable access doors so that motor maintenance and replacement can be performed without the need to remove the air ducts.

4. Fan Parts and Drive Mechanism (For belt drive type only)
